Chemical Project at Henan Province, China

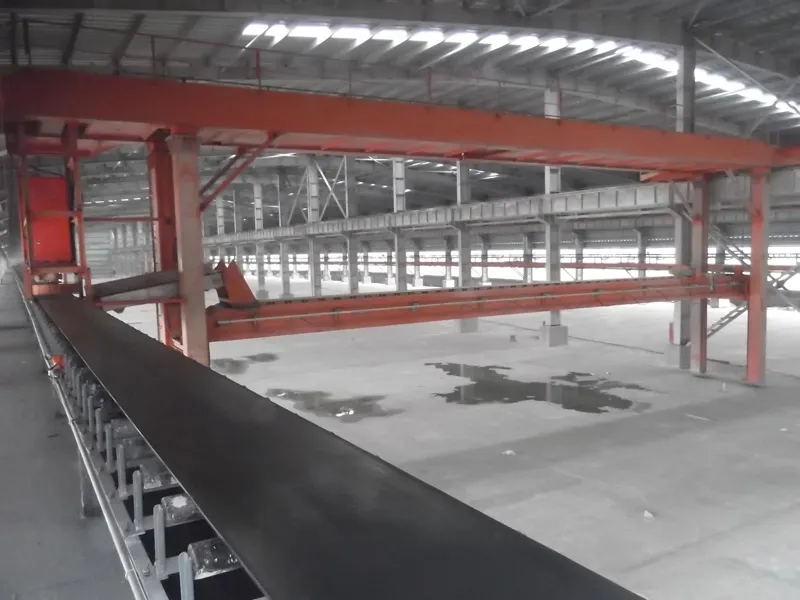

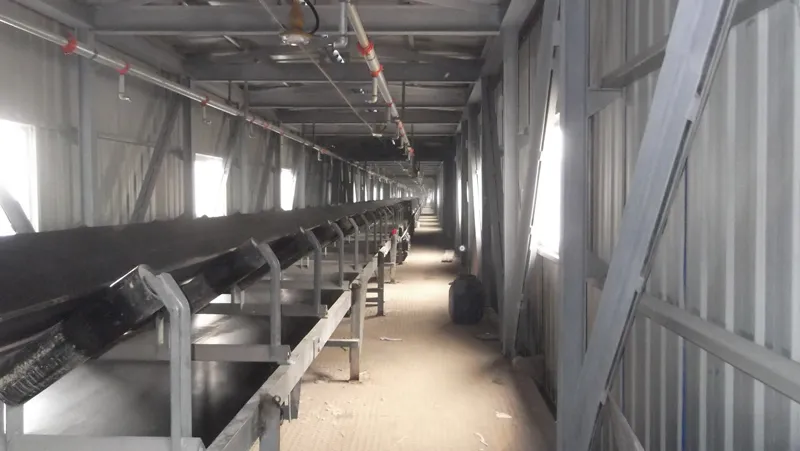

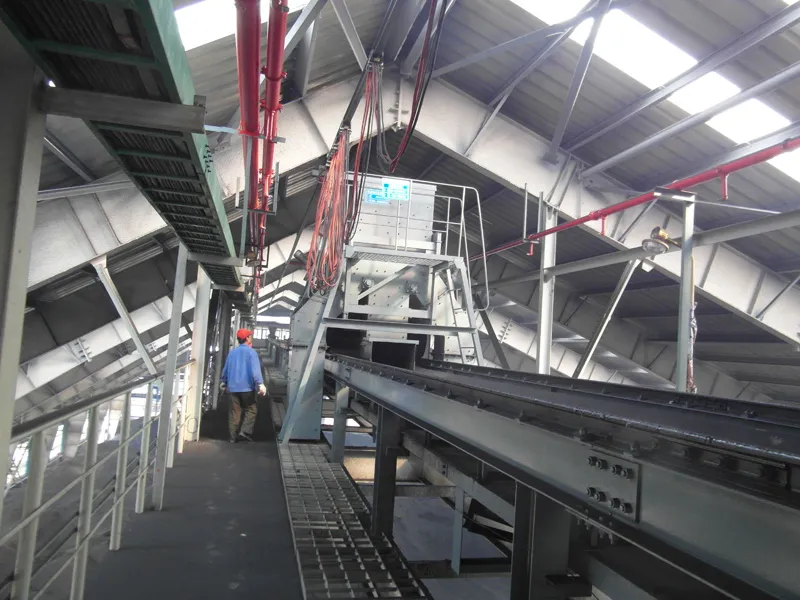

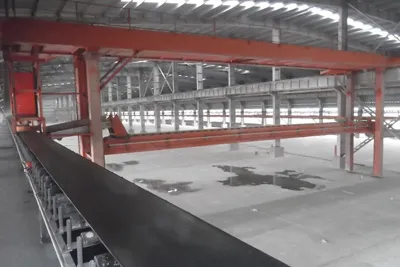

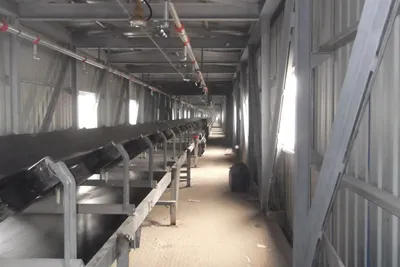

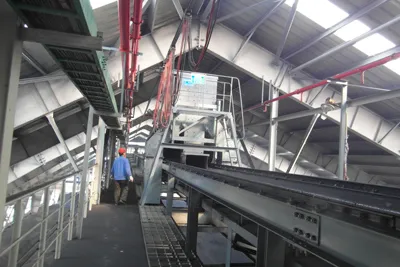

Henan Anyang Chemical Project
The system comprises a total of 35 belt conveyors with a combined installed conveying length of 4100m, including:
- 12 conveyors with a belt width of 650mm, a rated capacity of 100t/h, and a belt speed of 1.25m/s
- 1 conveyor with a belt width of 800mm, a rated capacity of 130t/h, and a belt speed of 1.25m/s
- 18 conveyors with a belt width of 1000mm, a rated capacity of 280t/h, and a belt speed of 1.25m/s
- 1 conveyor with a belt width of 1200mm, a rated capacity of 400t/h, and a belt speed of 1.6m/s
- 3 conveyors with a belt width of 1400mm, a rated capacity of 1000t/h, and a belt speed of 2.0m/s
Recommended Equipment
-
- Long-Distance Belt Conveyor The long-distance belt conveyors are a solution developed for moving materials over large distances and around corners easily. View More

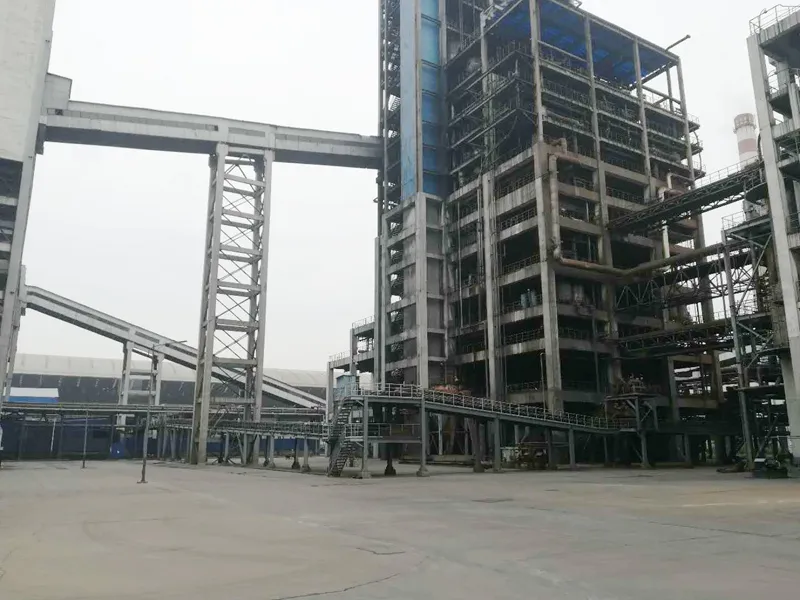

Chemical Project at Kaifeng, Henan Province
The system comprises a total of 39 belt conveyors with a combined installed conveying length of 2960m, including:
- 8 conveyors with a belt width of 650mm, conveying capacities of 30-200t/h, and belt speeds of 1-2m/s
- 3 conveyors with a belt width of 800mm, conveying capacities of 60-90t/h, and belt speeds of 1-1.6m/s
- 24 conveyors with a belt width of 1000mm, conveying capacities of 300-600t/h, and a belt speed of 2m/s
- 1 conveyor with a belt width of 1200mm, a conveying capacity of 300t/h, and a belt speed of 1.6m/s
- 4 conveyors with a belt width of 1400mm, conveying capacities of 2400t/h, and belt speeds of 2-4m/s
Recommended Equipment
-
- Trough Belt Conveyor The trough belt conveyor is a stationary belt conveyor system manufactured with materials such as cotton canvas, nylon, polyester fabric, and steel cord conveyor belts. View More
