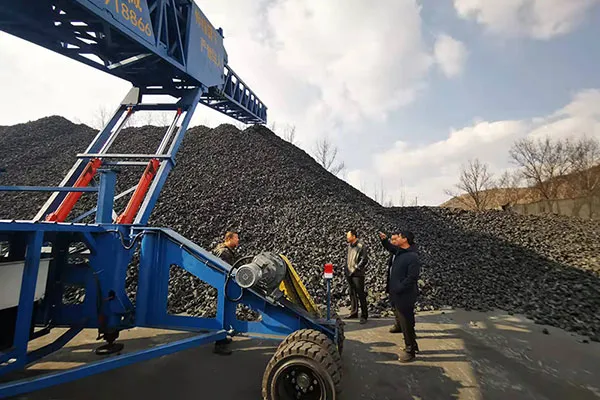

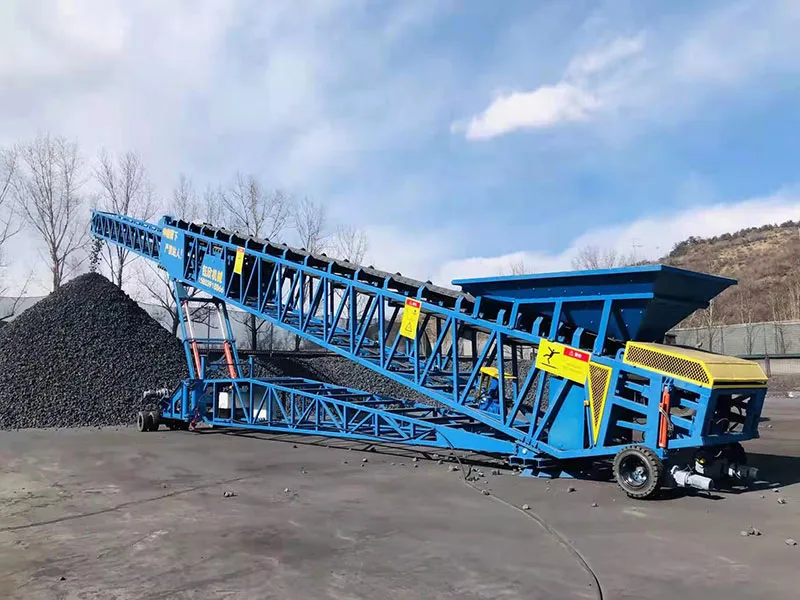

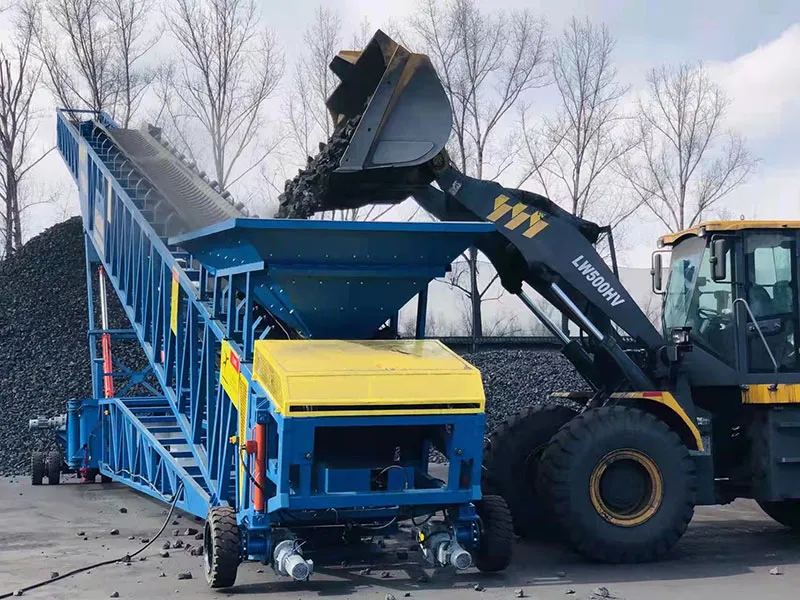

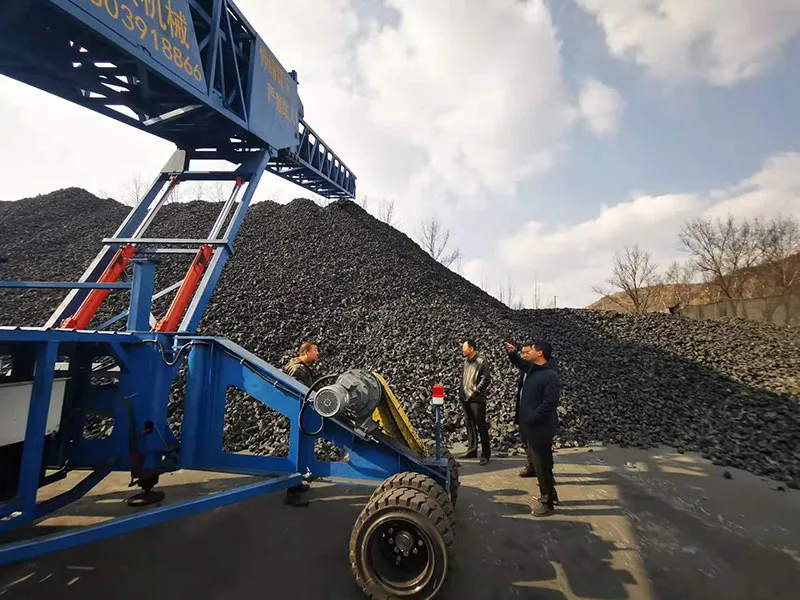

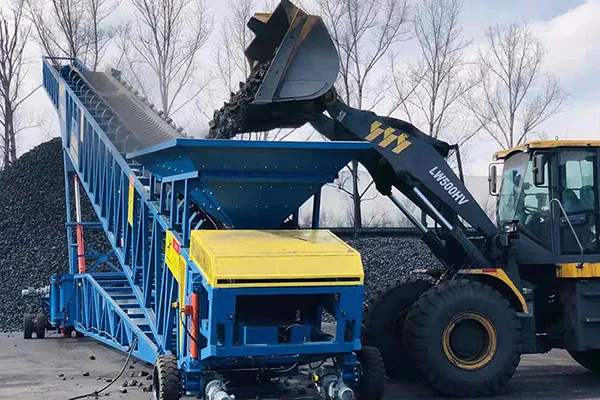

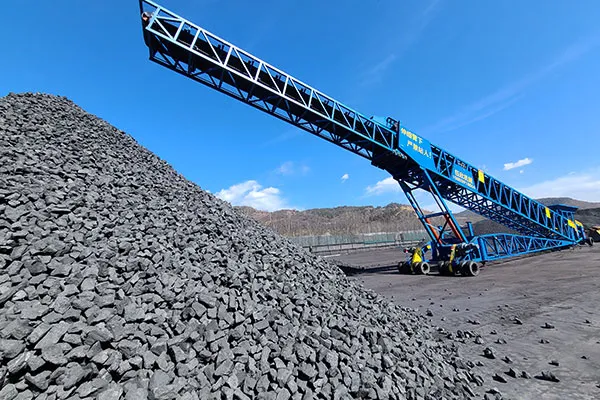

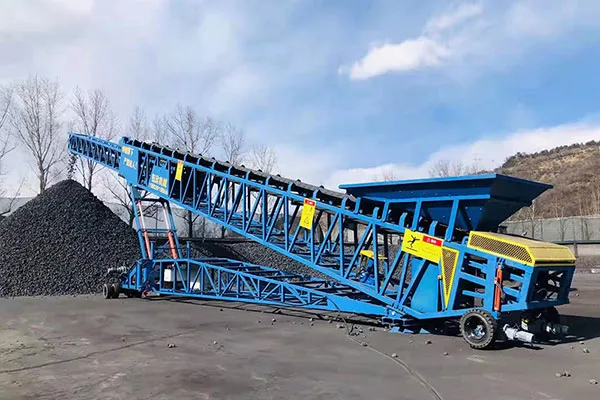

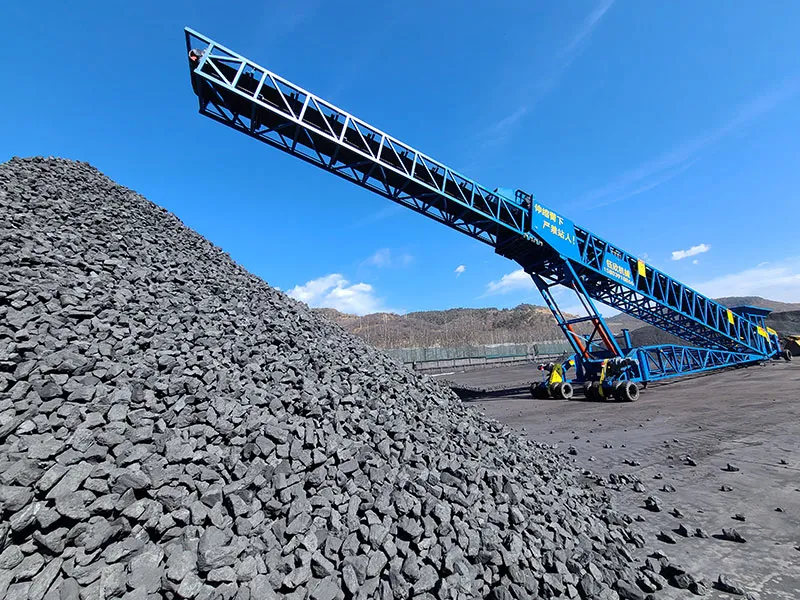

The conveyor system has a maximum extended length of 40.8 m and a belt width of 1,200 mm. Featuring a telescopic boom that can extend up to 12 m, with a luffing angle range of 8°–17°. The maximum discharge height at the front end of the telescopic boom reaches 12.1 m.

The system is capable of conveying 1,200 tons of material per hour with a bulk density of 1.6 t/m3 at a speed of 3.15 m/s, and a maximum stacking height of 10.5 m. The equipment supports wireless remote control, enabling automatic forward, backward, left, and right movement. It features 180-degree arc stacking, front boom extension and retraction, and other operational functions. The system is equipped with dual power configurations, allowing operation on either electric or diesel power.
